SC50
SC50S
SC50Pro

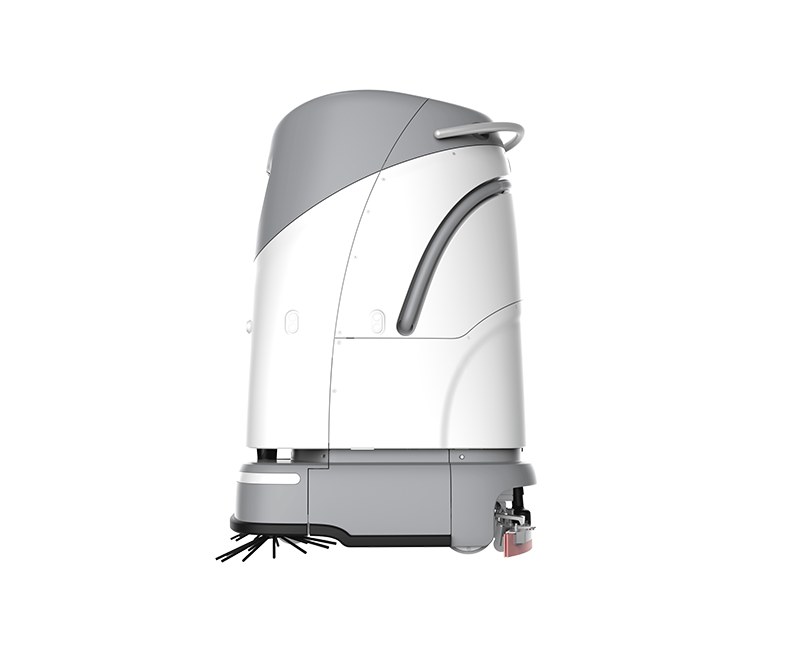

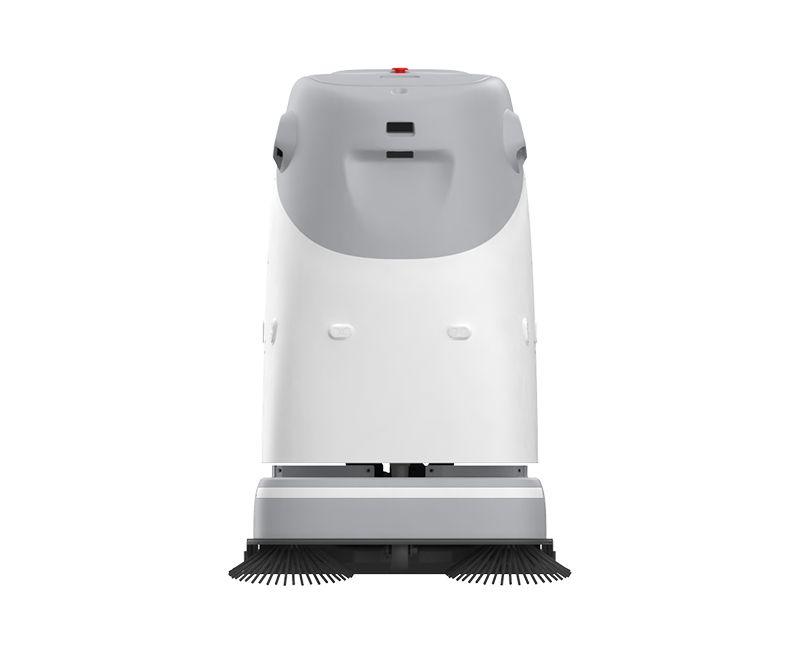

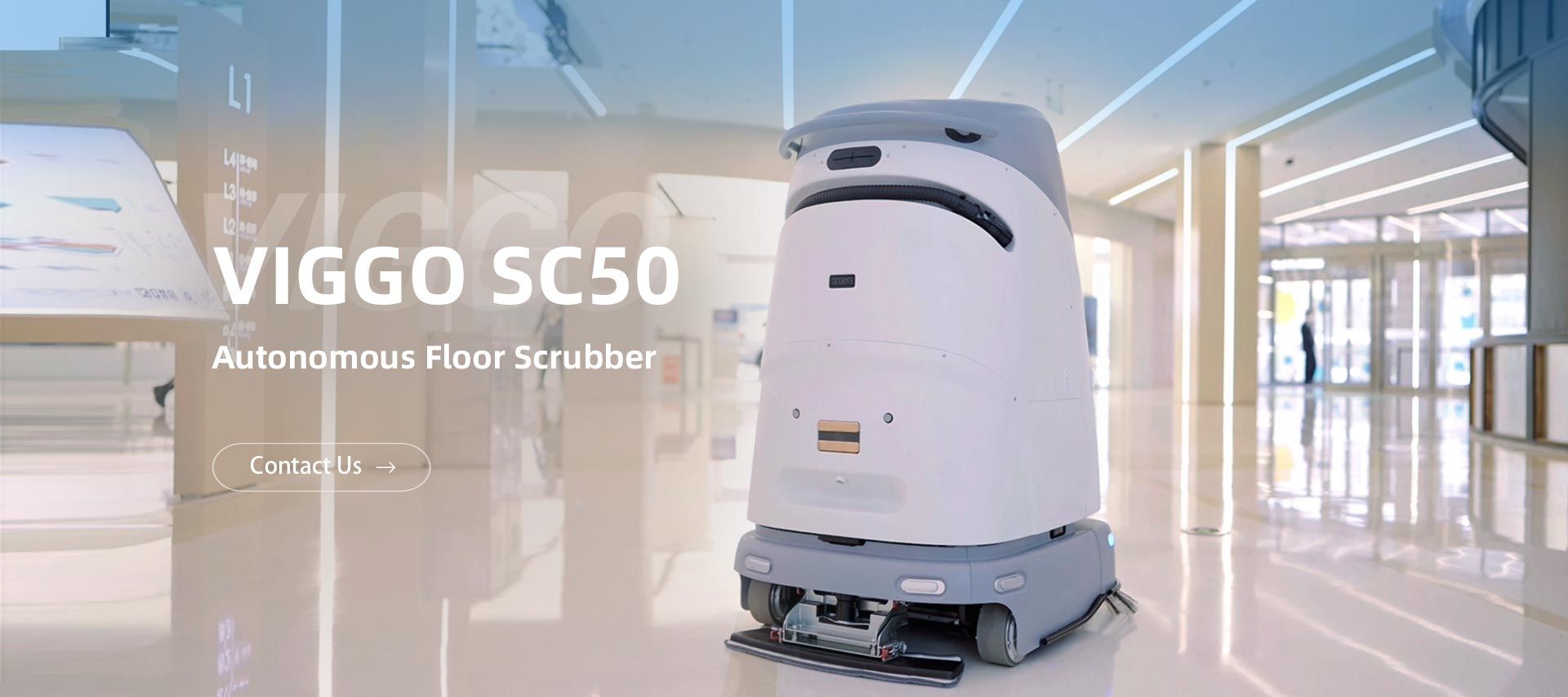

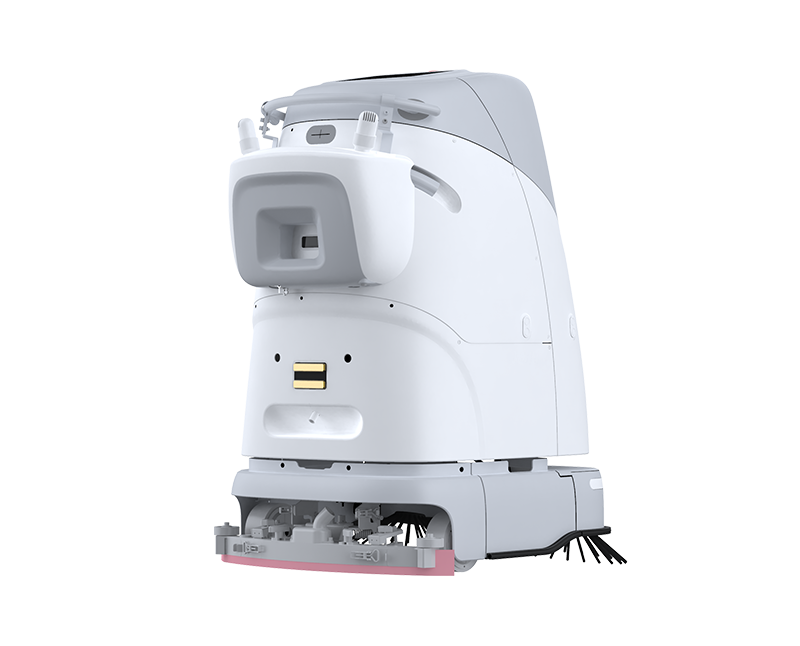

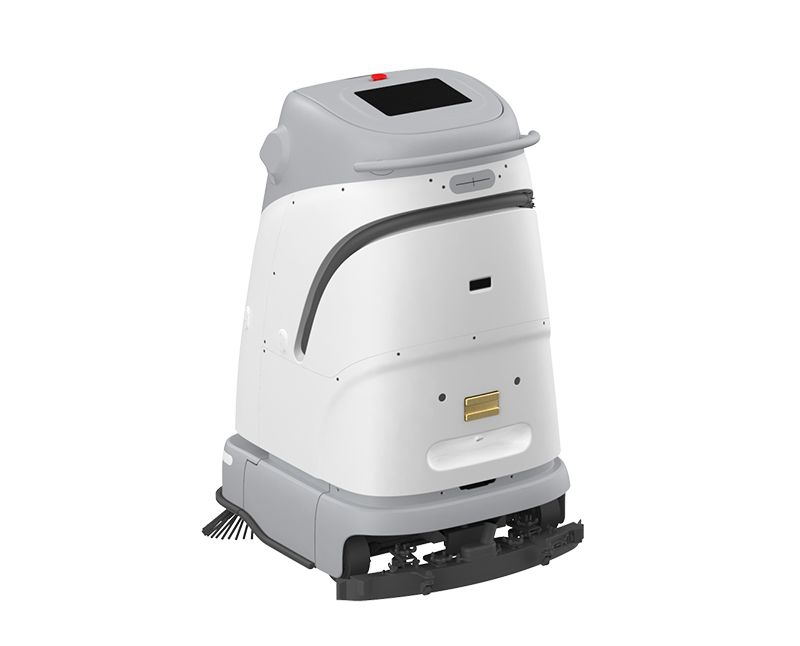

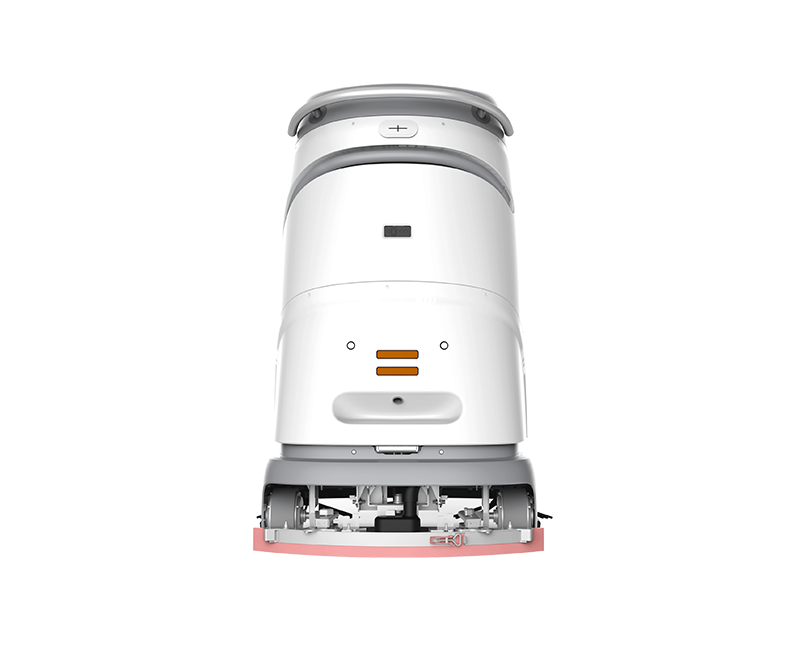

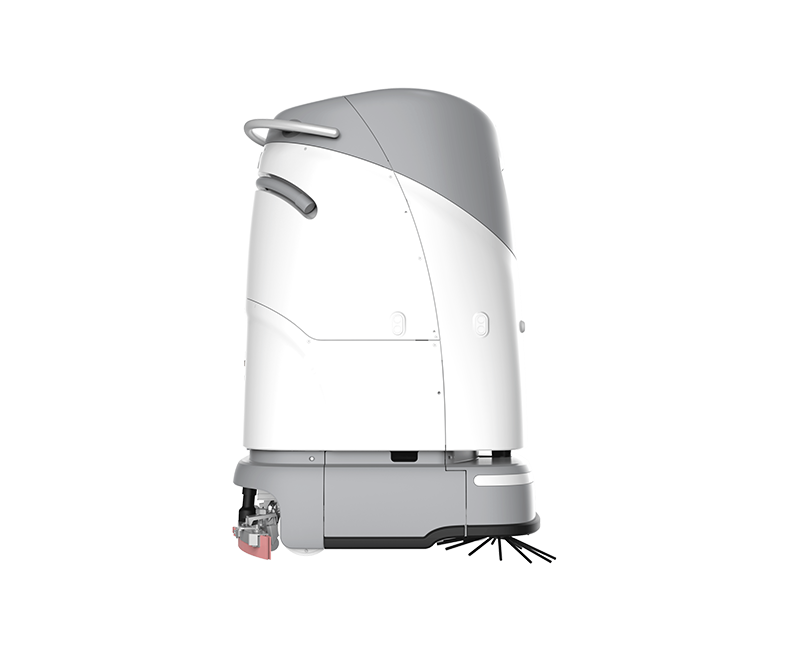

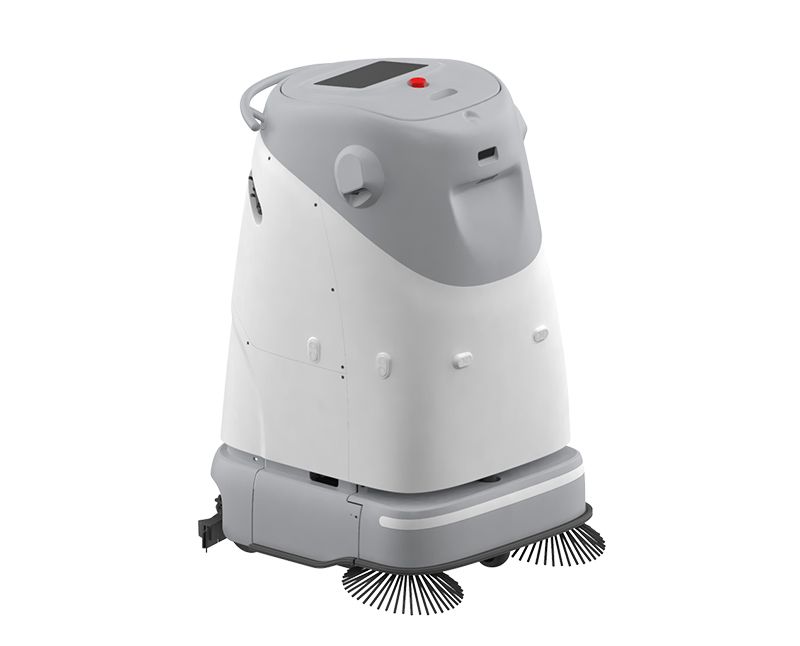

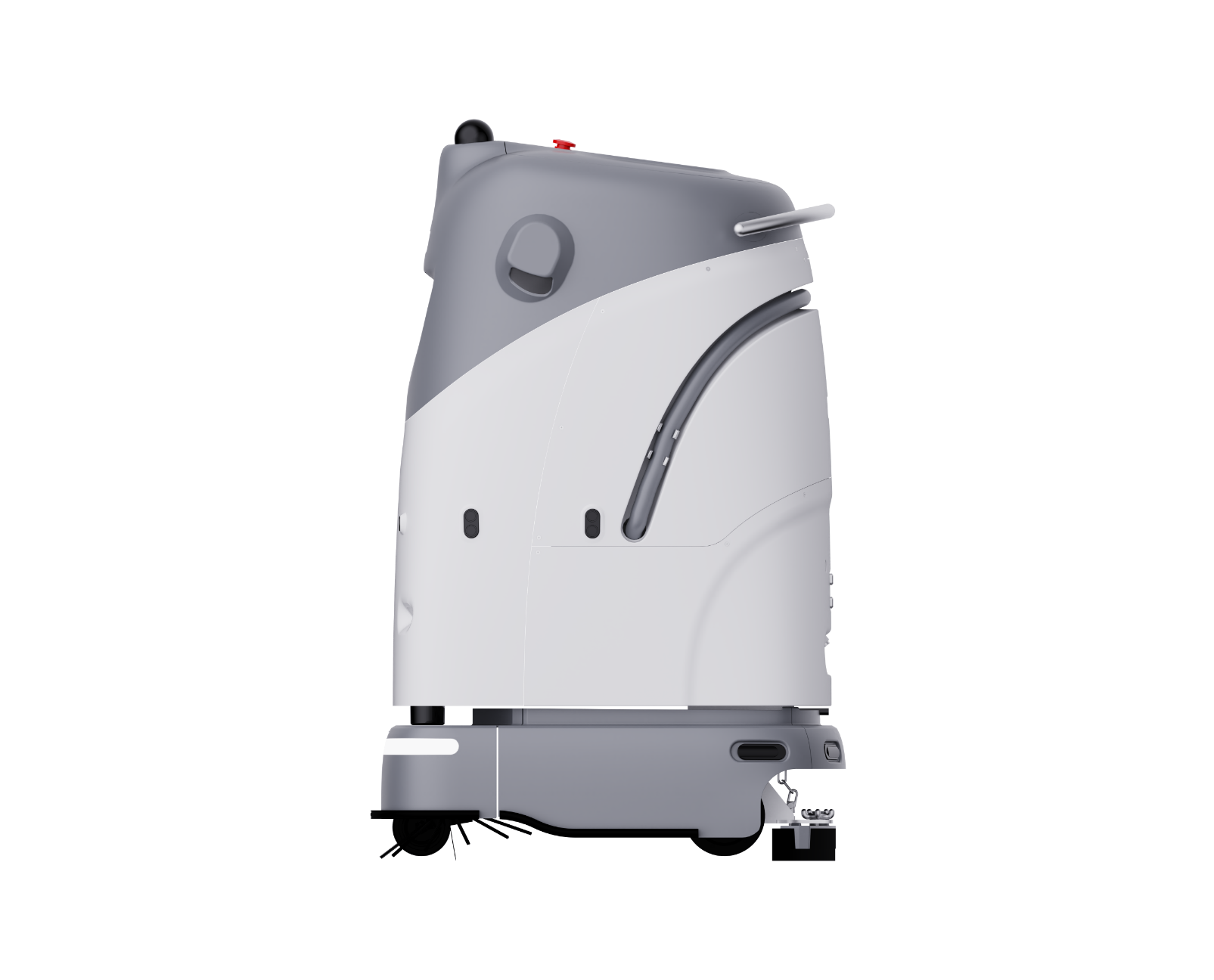

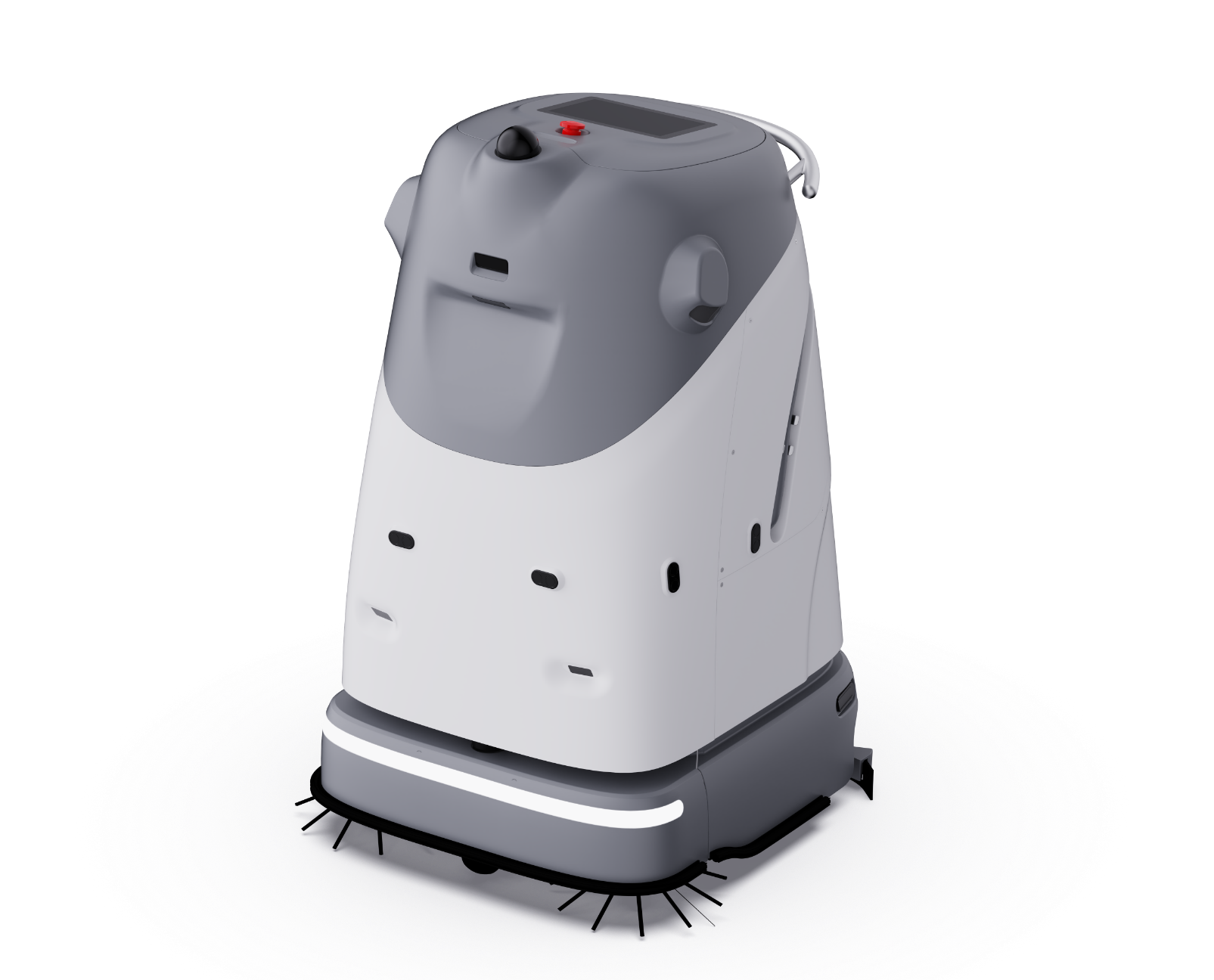

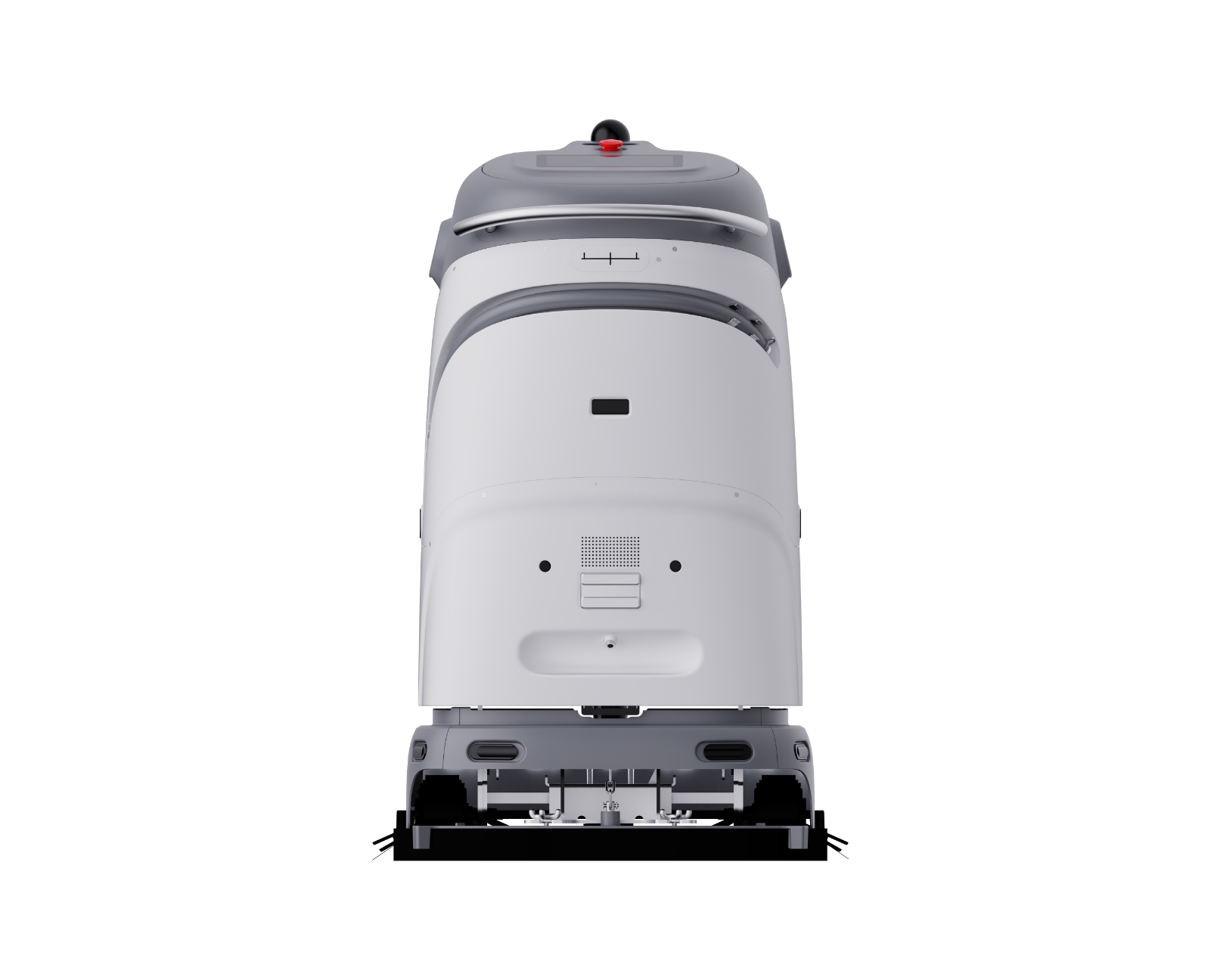

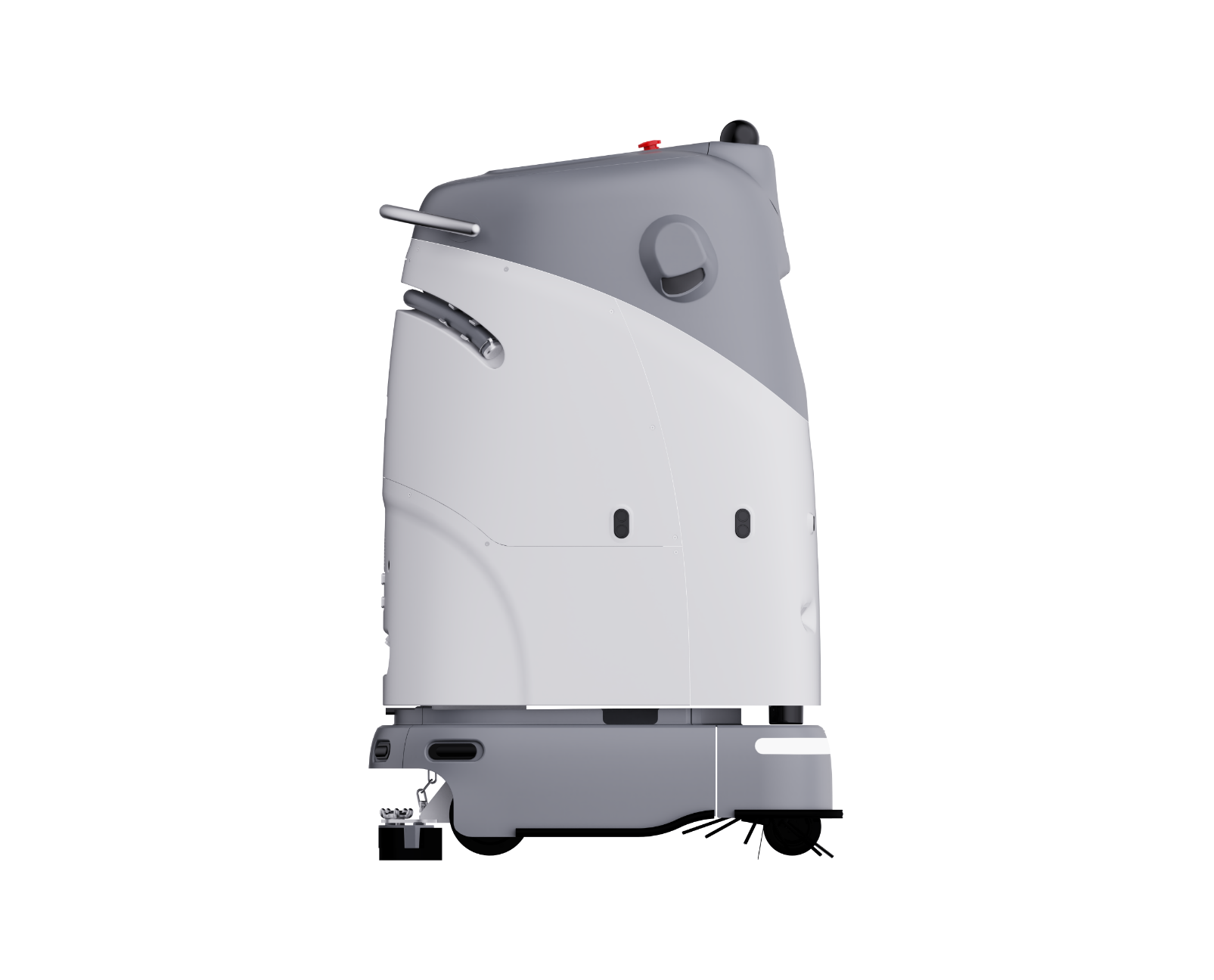

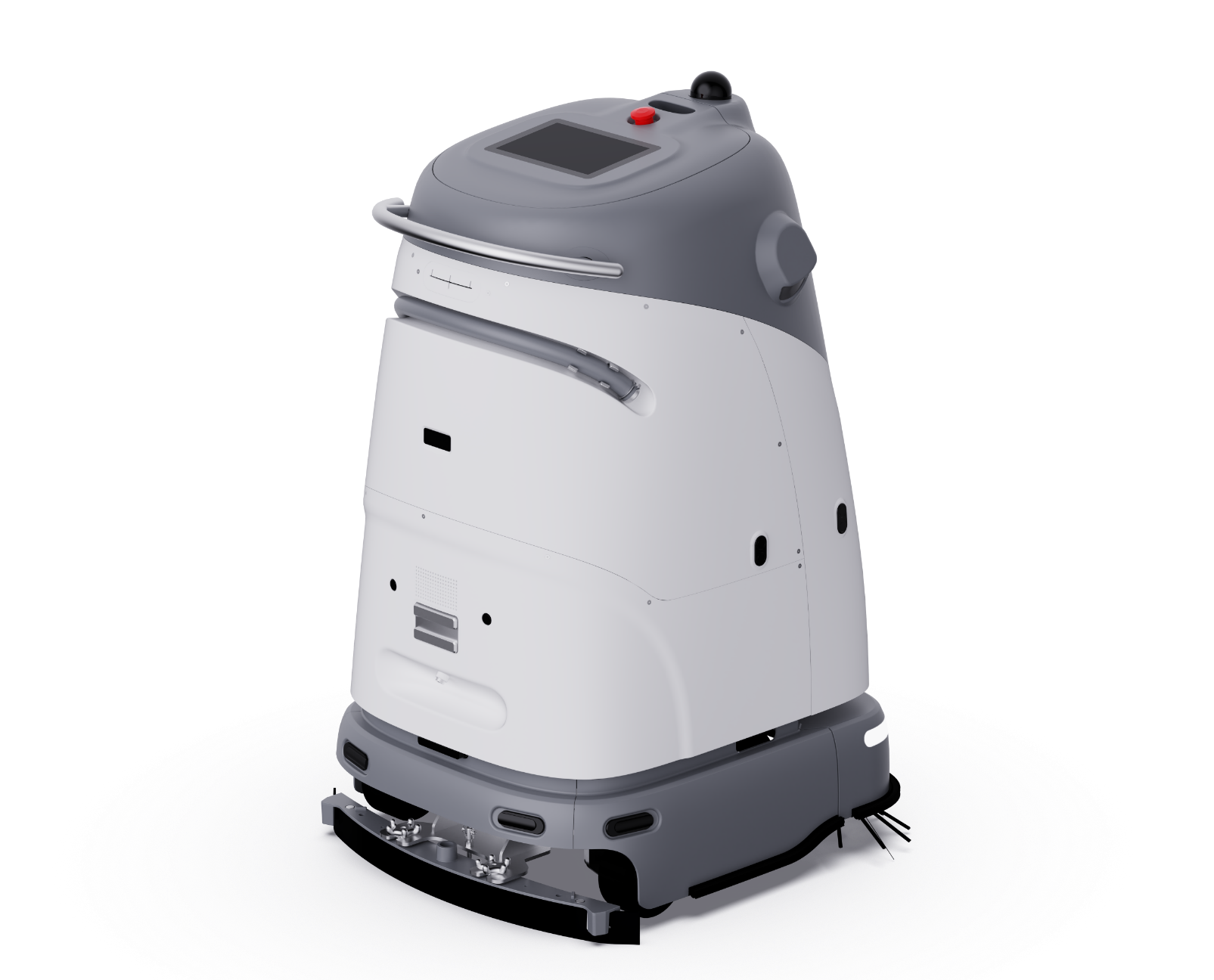

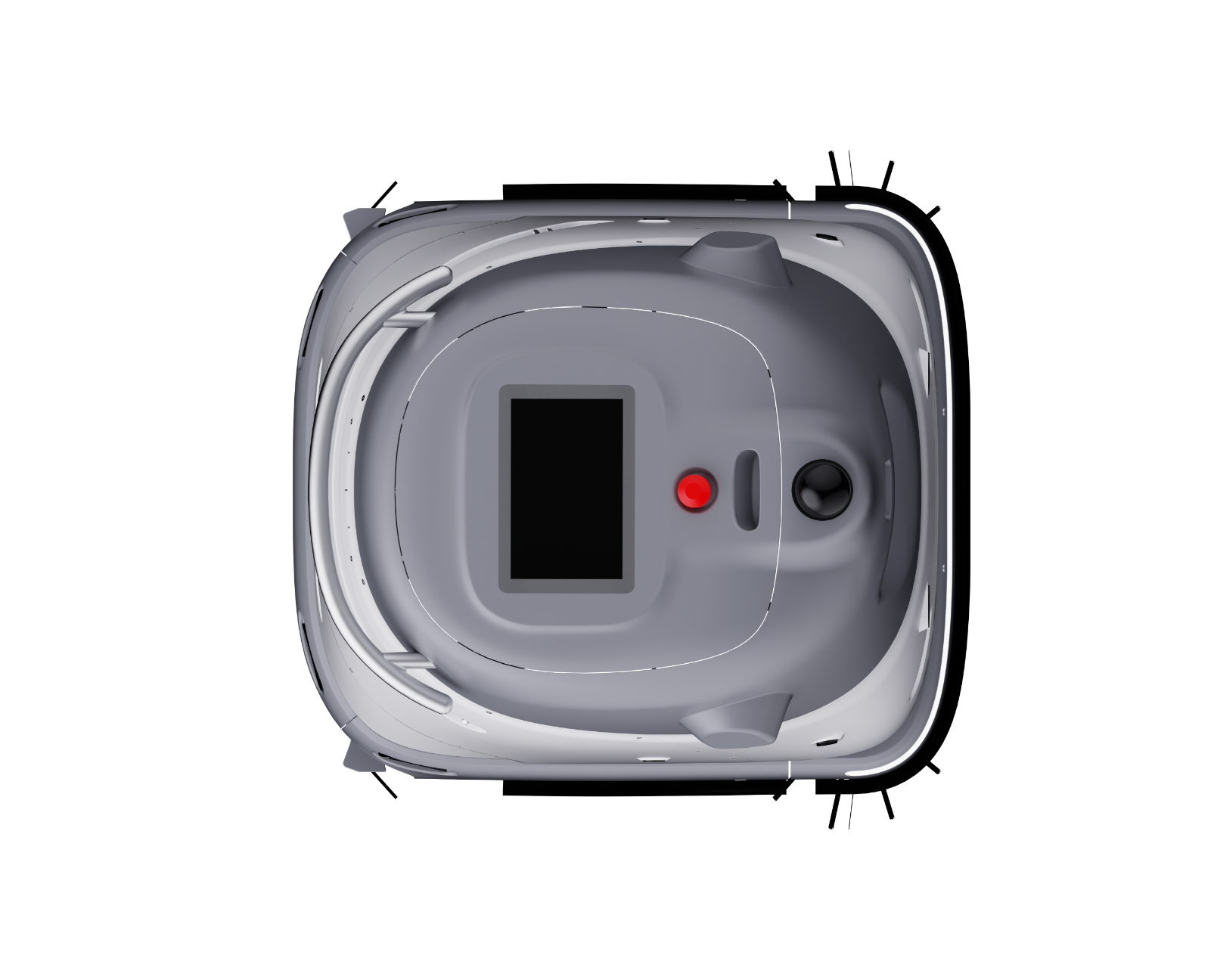

VIGGO SC50
SC50 automatic cleaning robot – your ultimate solution for hassle-free cleaning. With its adaptability to diverse floor types, automatic awakening feature, and professional cleaning capabilities, it effortlessly navigates small to medium indoor spaces. Experience the convenience of fully automatic operation and step into a cleaner future.
Smart Recognition
Fully automatic operation
Professional cleaning

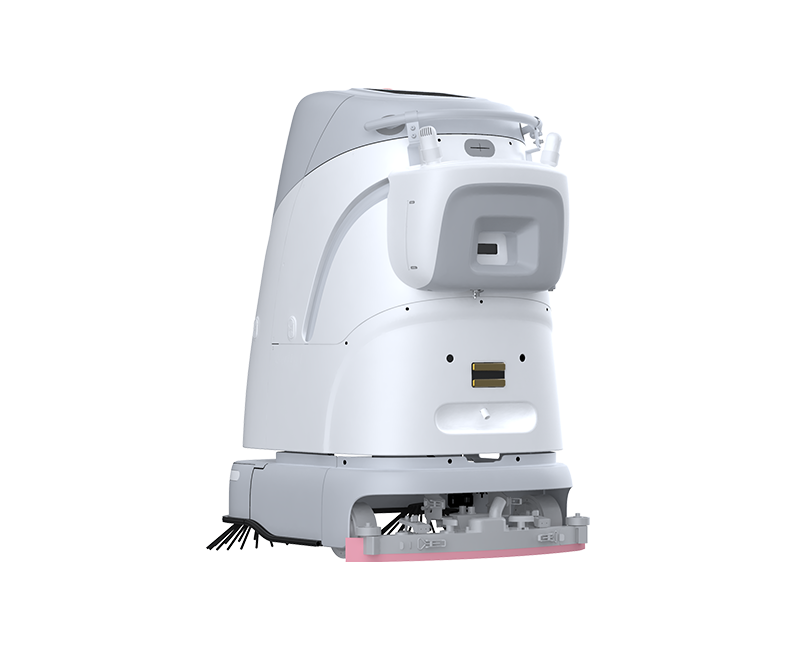

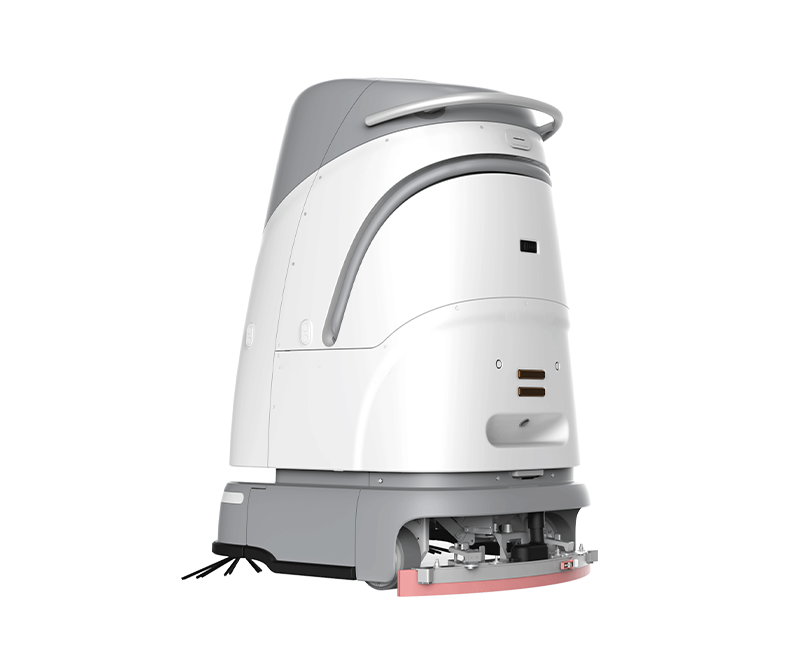

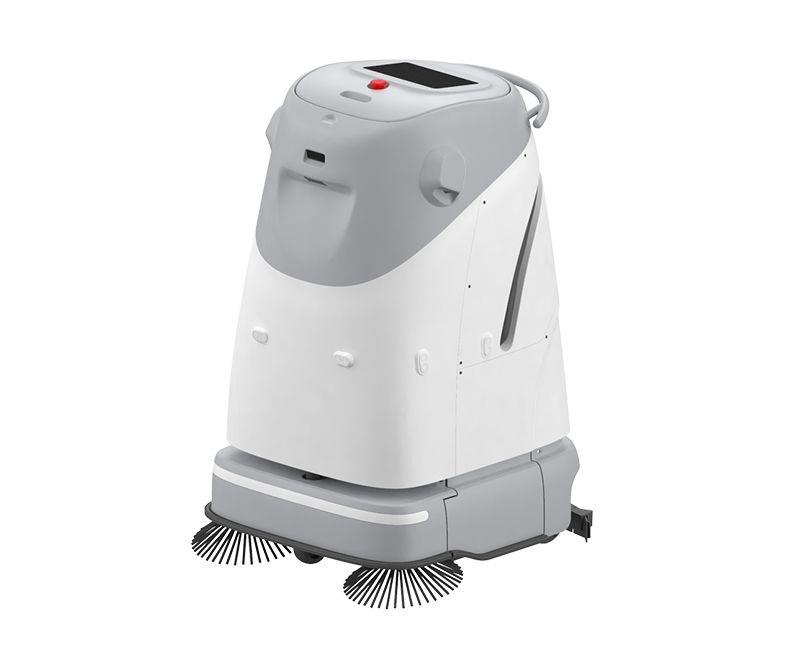

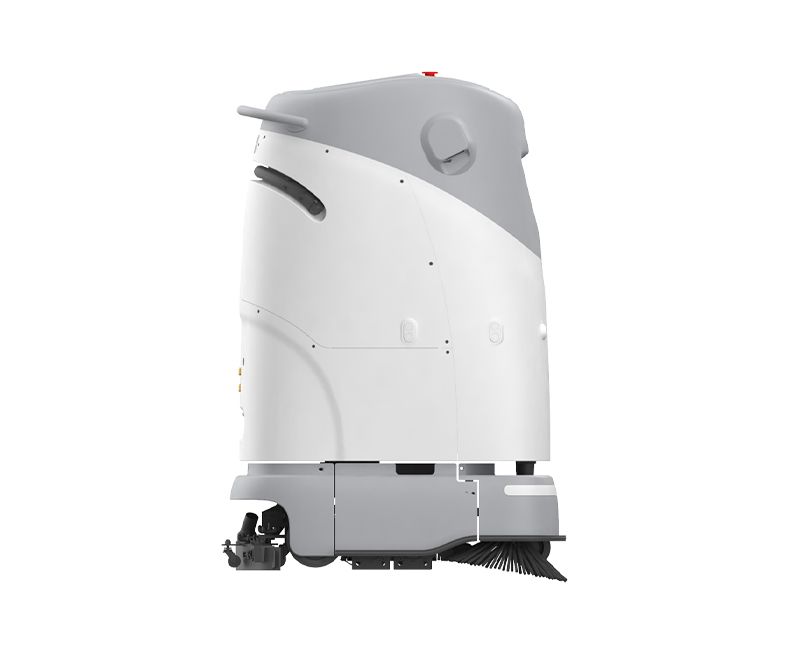

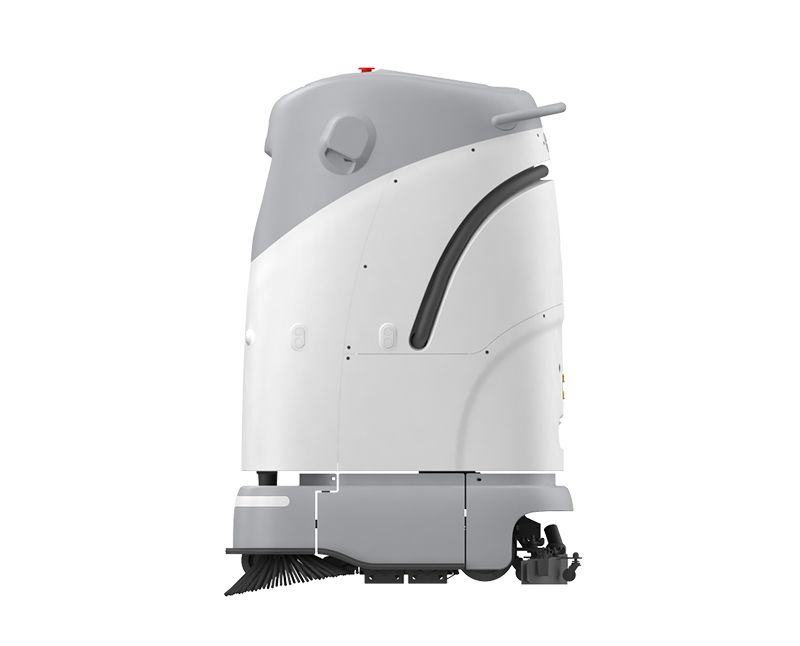

VIGGO SC50S
Suitable for small and medium-sized indoor scenes
All-in-one
Fully automatic operation
User-friendly design

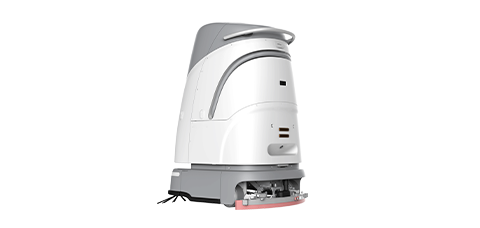

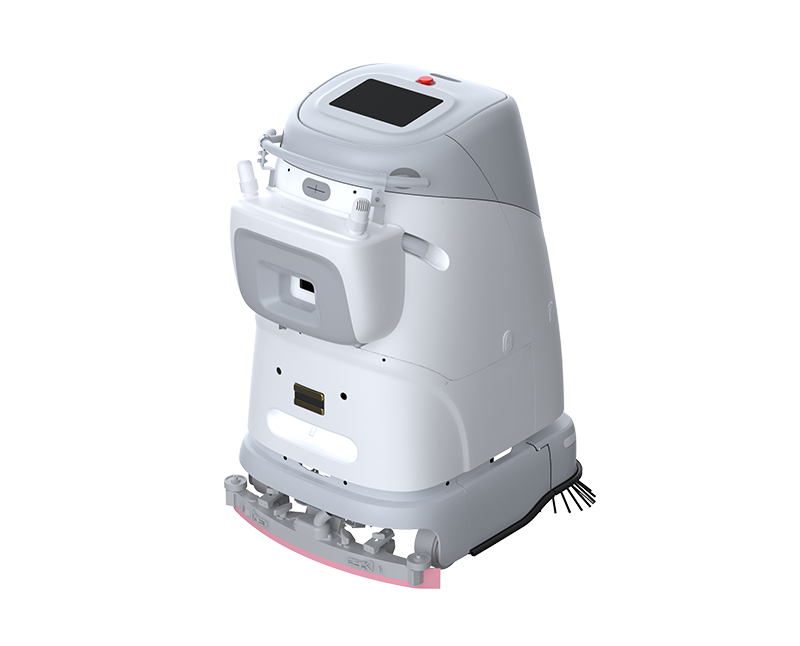

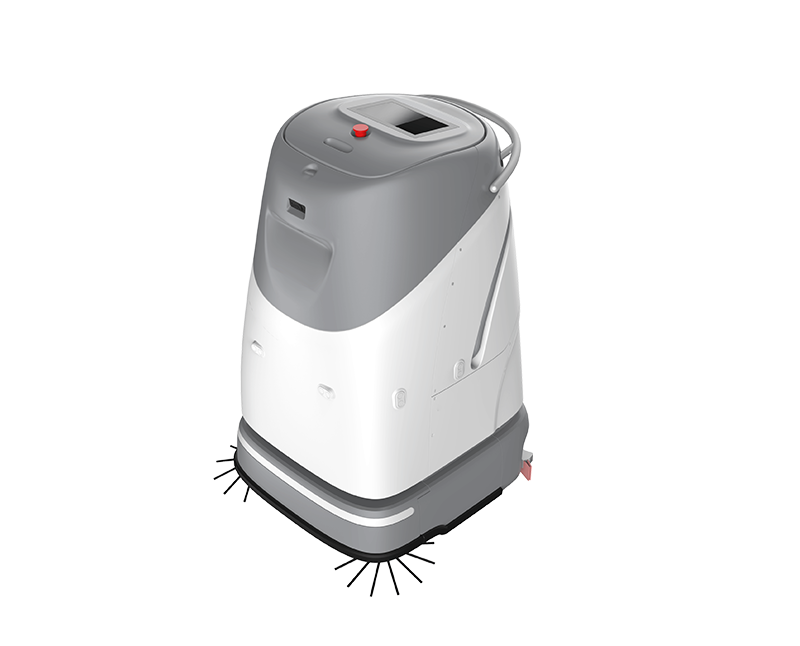

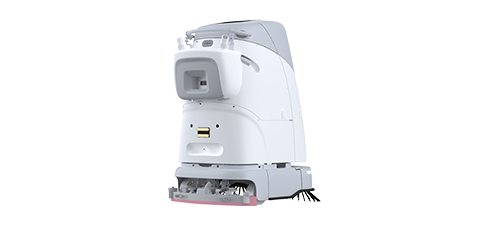

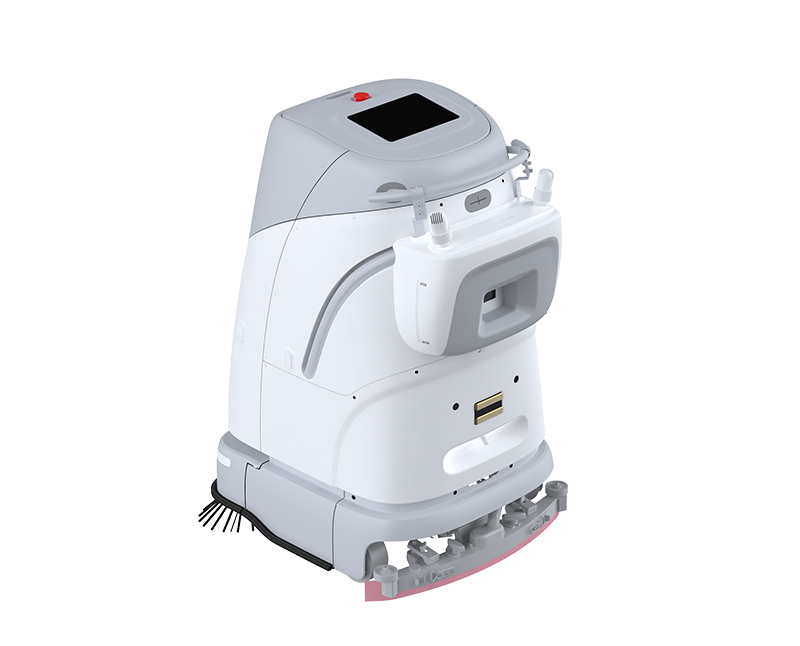

VIGGO SC50Pro
Suitable for small and medium-sized complicated indoor scenes
Intelligent identification
All-in-one
Fully automatic operation
PRODUCT FEATURES
Smart Cleaning
Provide adaptive lifting rolling brush module, satisfying various ground sweeping needs.
Fully Automated Operations
Support resumption of operations at the breakpoint, omission check and compensation, and automatic water replenishment, drainage and charging.
Excellent Runtime
Deliver excellent runtime of up to 5-7 hours with 24 V/60 Ah high-capacity battery, 42 L water purification tank and 30 L sewage tank.
Multi-Purpose
Allow for switching between floor clean and dust removal modules, delivering triple features of floor sweeping, floor clean and dust removal.
Smart Recognition
Feature integrated technologies of positioning and sensing, ensuring driving safety in various scenarios.
Professional Cleaner
Come with double side brushes and double rolling brushes, effectively avoiding blockage of suction pipe and requiring no manual intervention during operations.
All-Round Cleaning
Support automatic boundary recognition and edge cleaning via side brush, without letting go of any corner.
Convenient Management
Support automatic uploading of operation reports, easy to obtain data and reports.
PRODUCT ADVANTAGES
01
ADVANTAGE

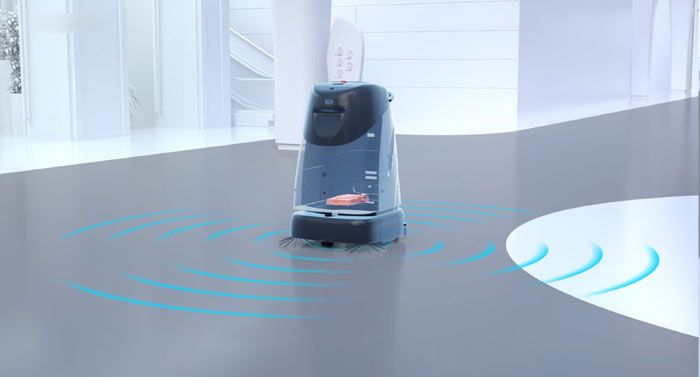

Accurate positioning and identification
Single line laser + RGBD + ultrasonic + anti-collision sensor, and a variety of sensors fusion multi-mode obstacle avoidance algorithm, help improve the identification accuracy and speed of obstacles in the scene, ensure the safe identification ability of the scrubber in operation, and avoid causing property losses;
02
ADVANTAGE
Fully automatic operation
Automatically adjustable roller brush, Break Break point resuming, cleaning of missed areas, automatic water filling/draining, automatic charging, access control and elevator linkage.
03
ADVANTAGE
Large capacity battery + fast charging
60Ah large-capacity battery, super-large clean water tank and sewage tank with a total capacity of 72L, and an automatic charging and drainage workstation. It also has a fast charging function that can be fully charged in 50 minutes, making the SC50 worry-free and without too much human intervention;
APPLICABLE GROUND
Marble
Small square tile
Silicon carbide
Cement floor
PVC floor
Ceramic tile
Epoxy floor
Rubble
INTELLIGENT CLEANING, SCENARIO-BASED SOLUTION
Industrial Scenario Solutions
Commercial Complex Scenario Solutions
Transportation Scenario Solutions
PARAMETER SPECIFICATIONS
SC50
SC50S
SC50Pro
Basic parameters
Size
800（L）*700（W）*1200（H）mm
Size
900（L）*740（W）*1200（H）mm
Size
800（L）*700（W）*1200（H）mm
Weight
180Kg
Weight
180Kg
Weight
180Kg
Battery Capacity
24V/60Ah
Battery Capacity
24V/60Ah
Battery Capacity
24V/60Ah
Battery Usage Time
2~2.5h（Scrubbing）/5~7h（Mopping）
Battery Usage Time
2~2.5h（Scrubbing）/5~7h（Mopping）
Battery Usage Time
2~2.5h（Scrubbing）/5~7h（Mopping）
Cleaning parameters
Cleaning Width
800mm
Cleaning Width
800mm
Cleaning Width
800mm
Washing Width
500mm
Washing Width
500mm
Washing Width
500mm
Squeegee Width
700mm
Squeegee Width
700mm
Squeegee Width
700mm
Max Cleaning Efficiency
1800㎡/h
Max Cleaning Efficiency
1800㎡/h
Max Cleaning Efficiency
1800㎡/h
Clean Water Tank
42L
Clean Water Tank
42L
Clean Water Tank
42L
Sewage Tank
30L
Sewage Tank
30L
Sewage Tank
30L
Trash Can
1.5L
Trash Can
1.5L
Trash Can
1.5L
Sensor Type
Core Sensor
Laser Radar*1
Core Sensor
Laser Radar*1
Core Sensor
Laser Radar*1
Core Sensor
Ultrasonic*6
Core Sensor
Ultrasonic*6
Core Sensor
Ultrasonic*6
Core Sensor
Vision Sensor*3
Core Sensor
Vision Sensor*3
Core Sensor
Vision Sensor*5
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Parameters
Spray Tank Volume
-
Spray Tank Volume
3L
Spray Tank Volume
-
Atomized Particles
-
Atomized Particles
＜10μm
Atomized Particles
-
Max Amount of Atomization
-
Max Amount of Atomization
1.25L/h
Max Amount of Atomization
-
Atomization Volume Control
-
Atomization Volume Control
3 gears adjustable
Atomization Volume Control
-
Spray Function Water Adding Method
-
Spray Function Water Adding Method
Add water on top
Spray Function Water Adding Method
-

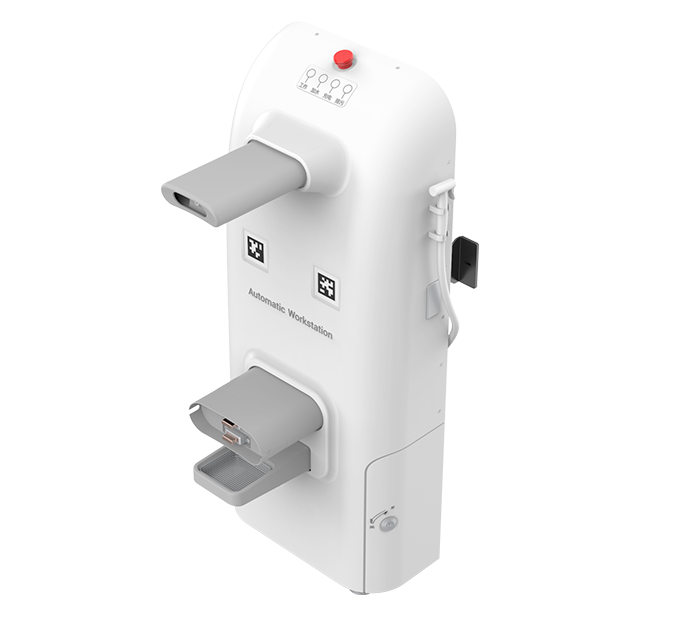

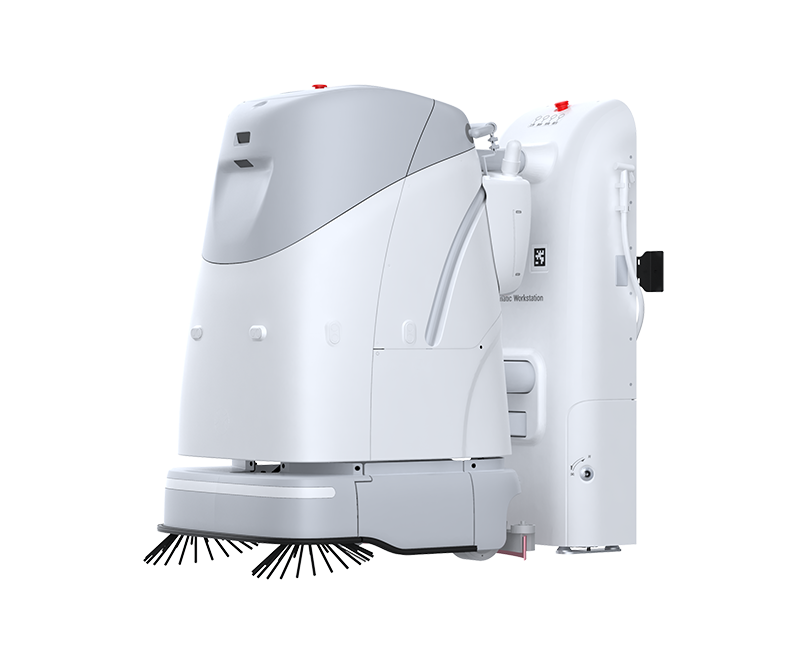

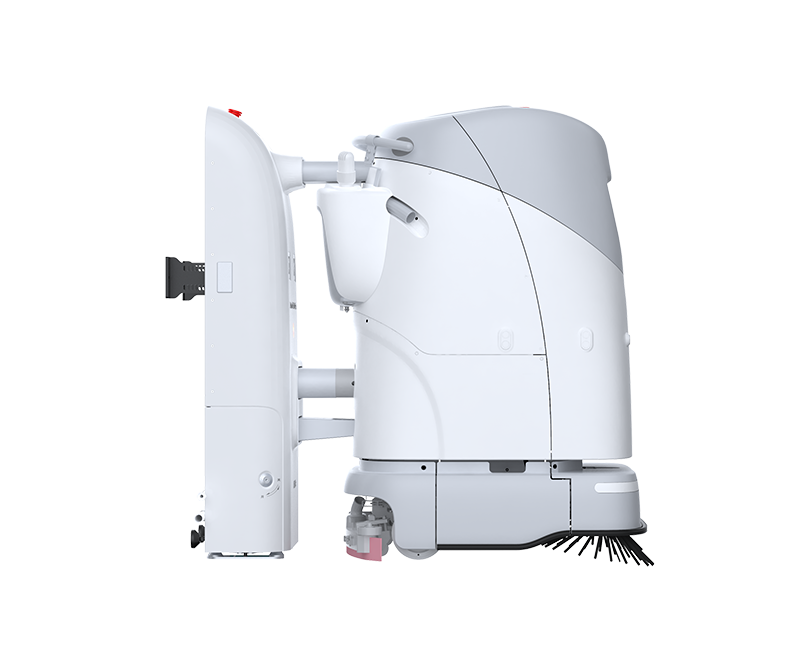

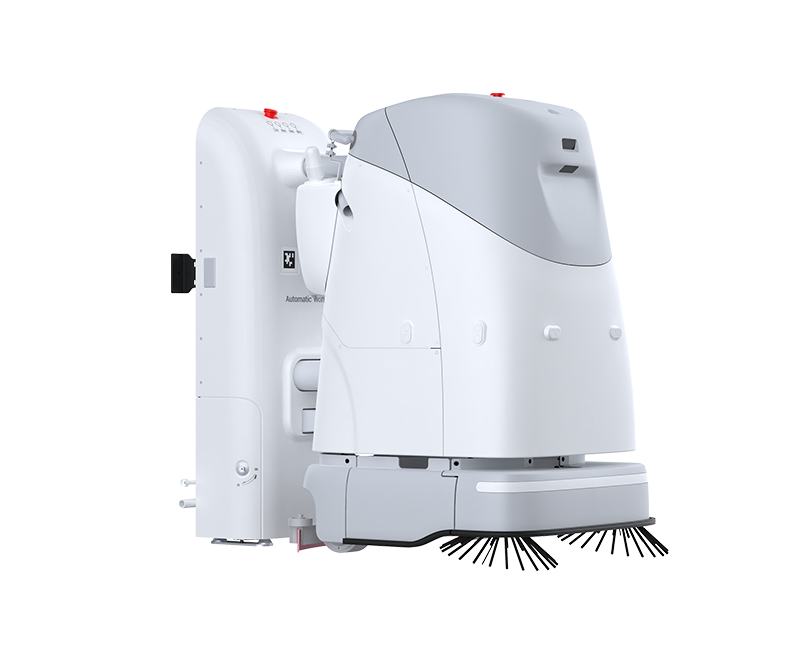

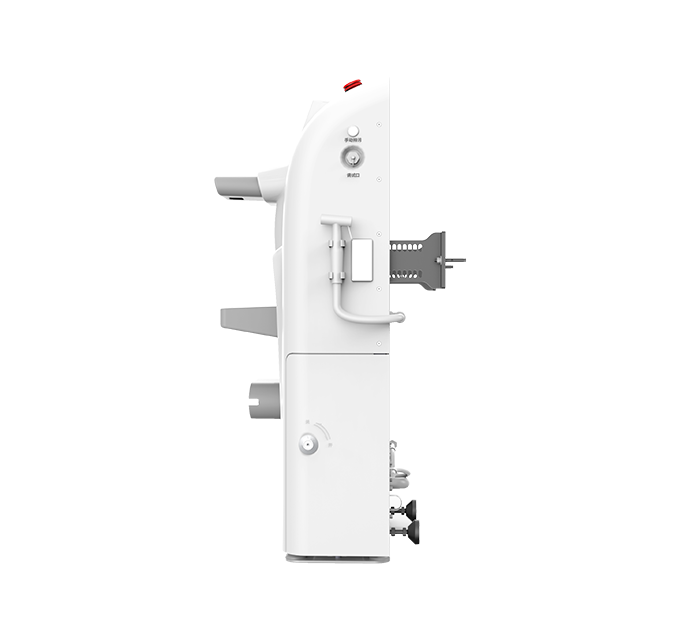

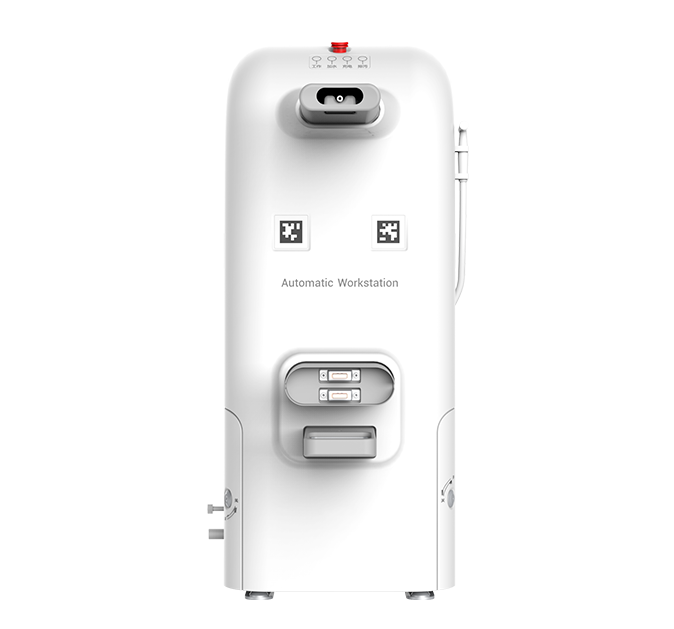

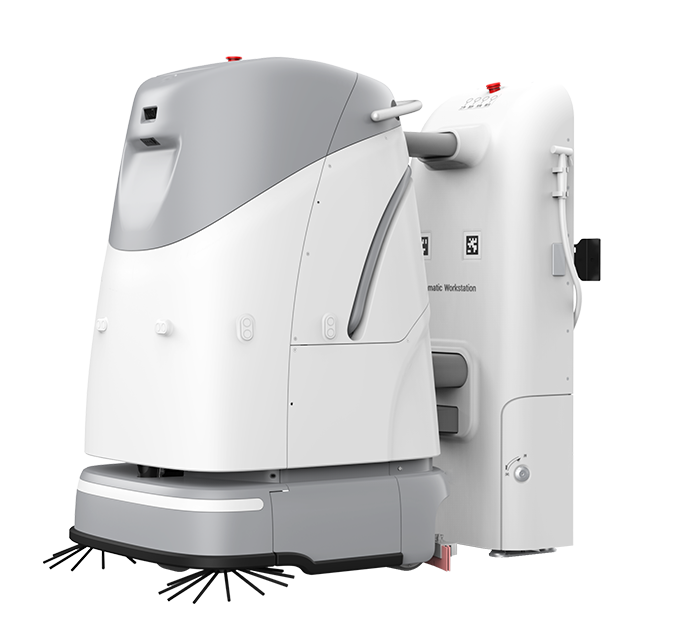

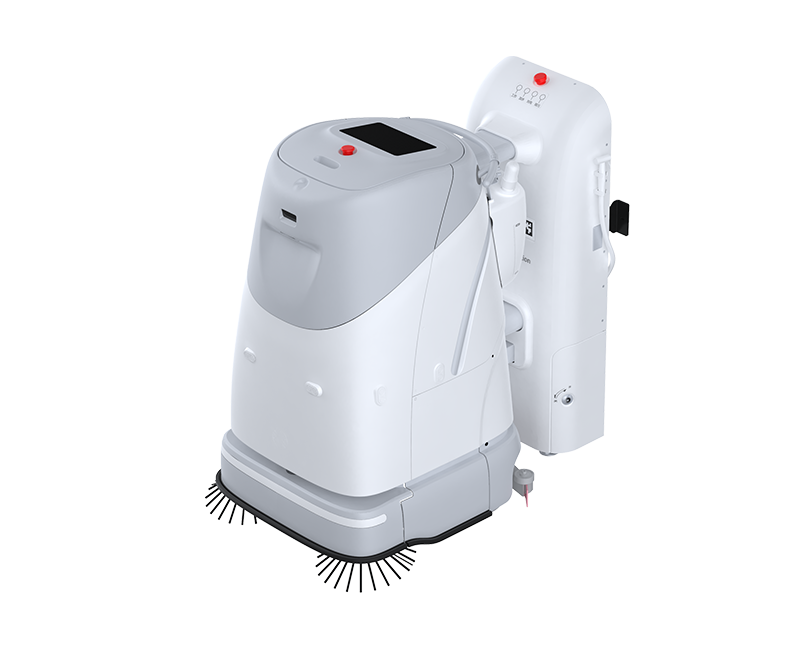

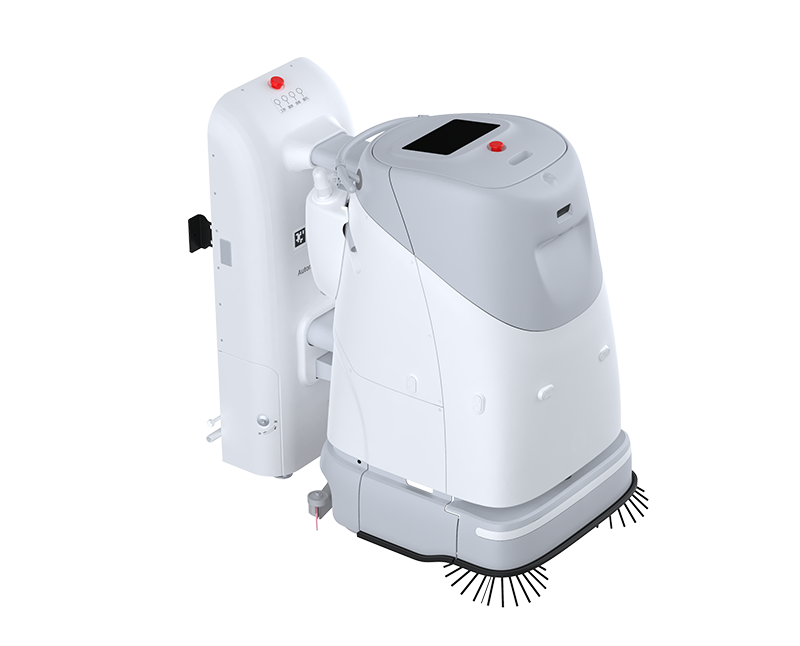

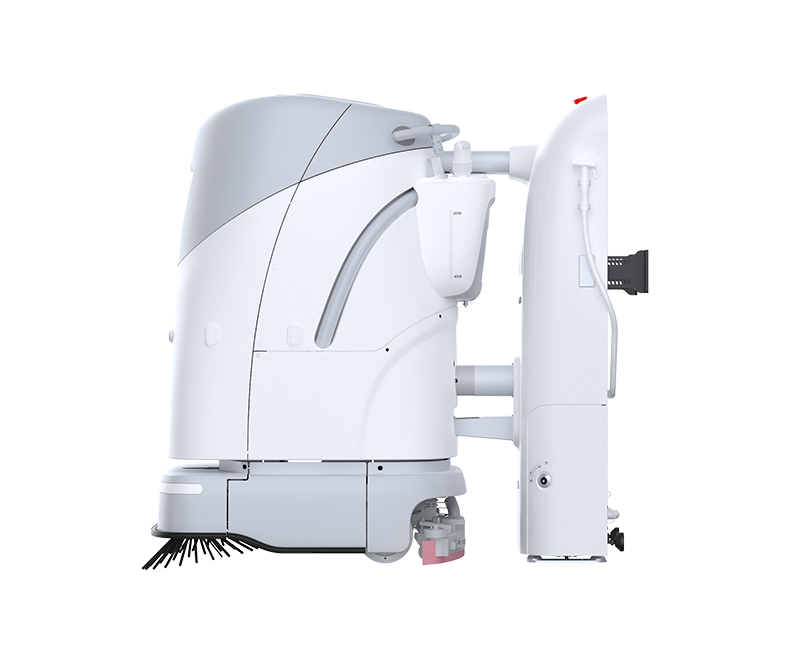

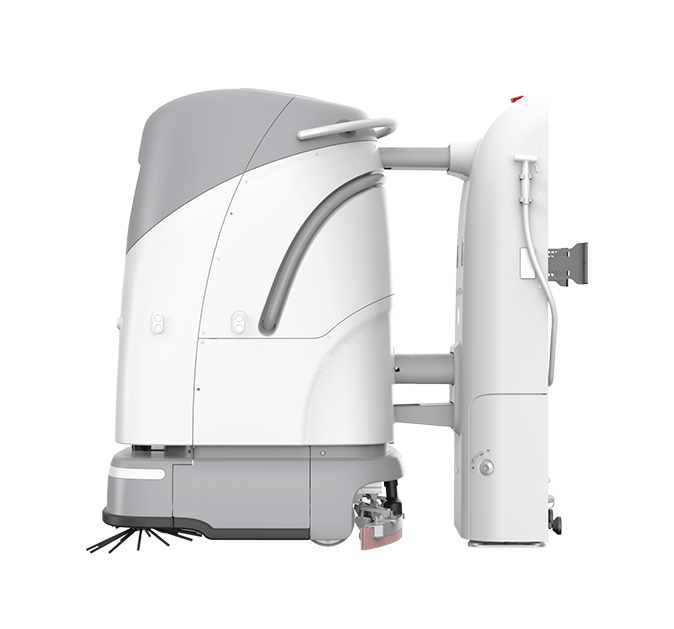

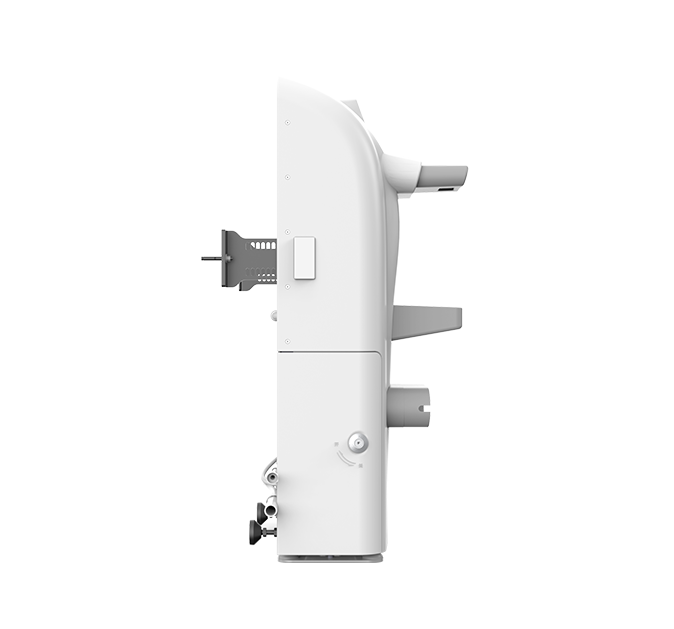

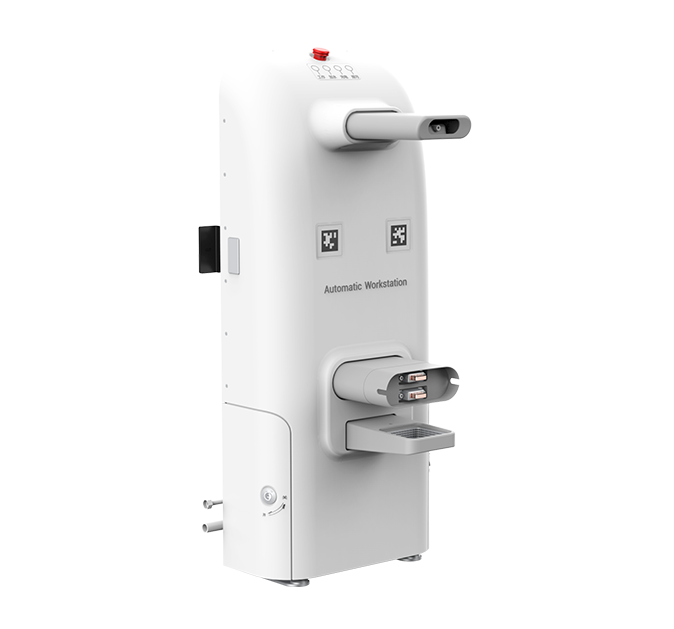

Workstation
WSC50

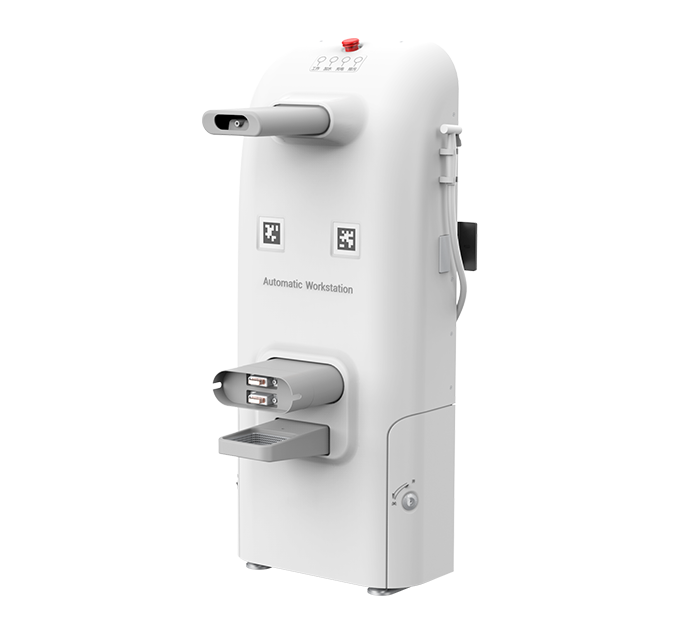

VIGGO Workstation
The workstation is an optional device(standard with charger) and serves to provide replenishment support to the vehicle, which can help lessen the frequency of manual intervention and boost HR efficiency.
When your floor needs frequent, thorough, and hygienic scrubbing, the reliable VIGGO automatic cleaning and scrubbing robot will help you keep your site clean and dry. The high-quality structure of the VIGGO SC50 automatic cleaning and scrubbing robot can handle cleanliness in the harshest environments.
VIGGO not only possesses high-precision positioning and recognition technology, but also an automatic cleaning and scrubbing robot that greatly improves cleaning efficiency. It is also your trusted partner in parts, supplies, and services. Learn how VIGGO enables you to consistently clean and contact a VIGGO representative. Our experts will customize the floor washer based on your exact function and specifications. Click here to contact us.
